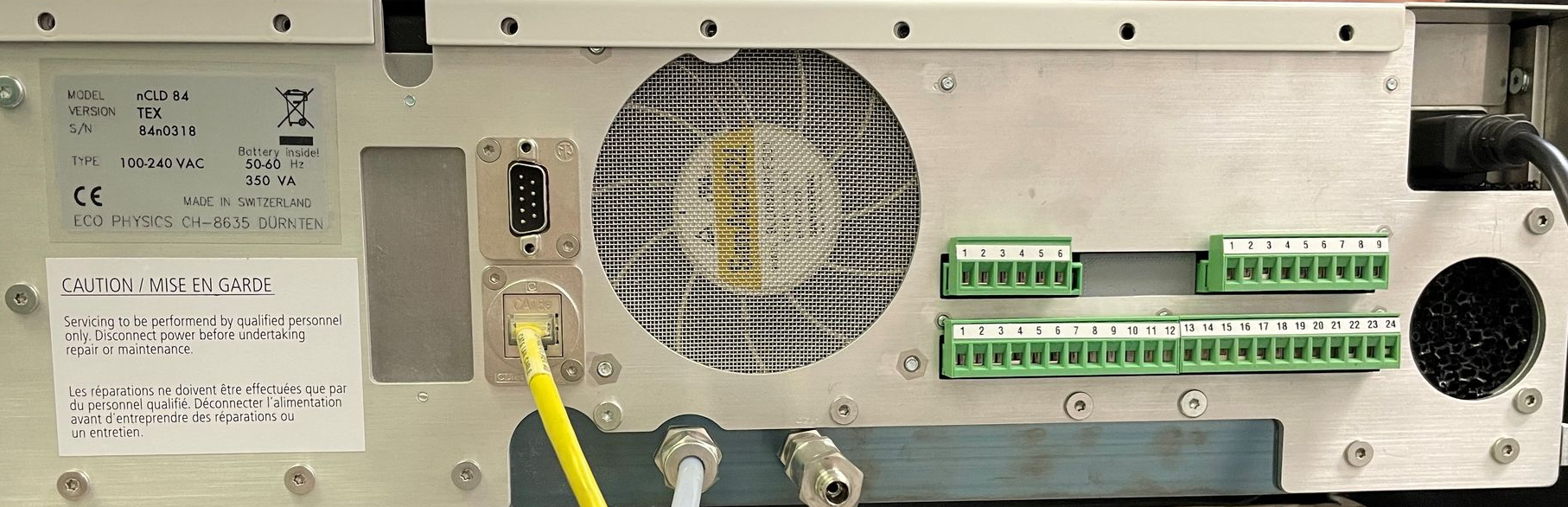

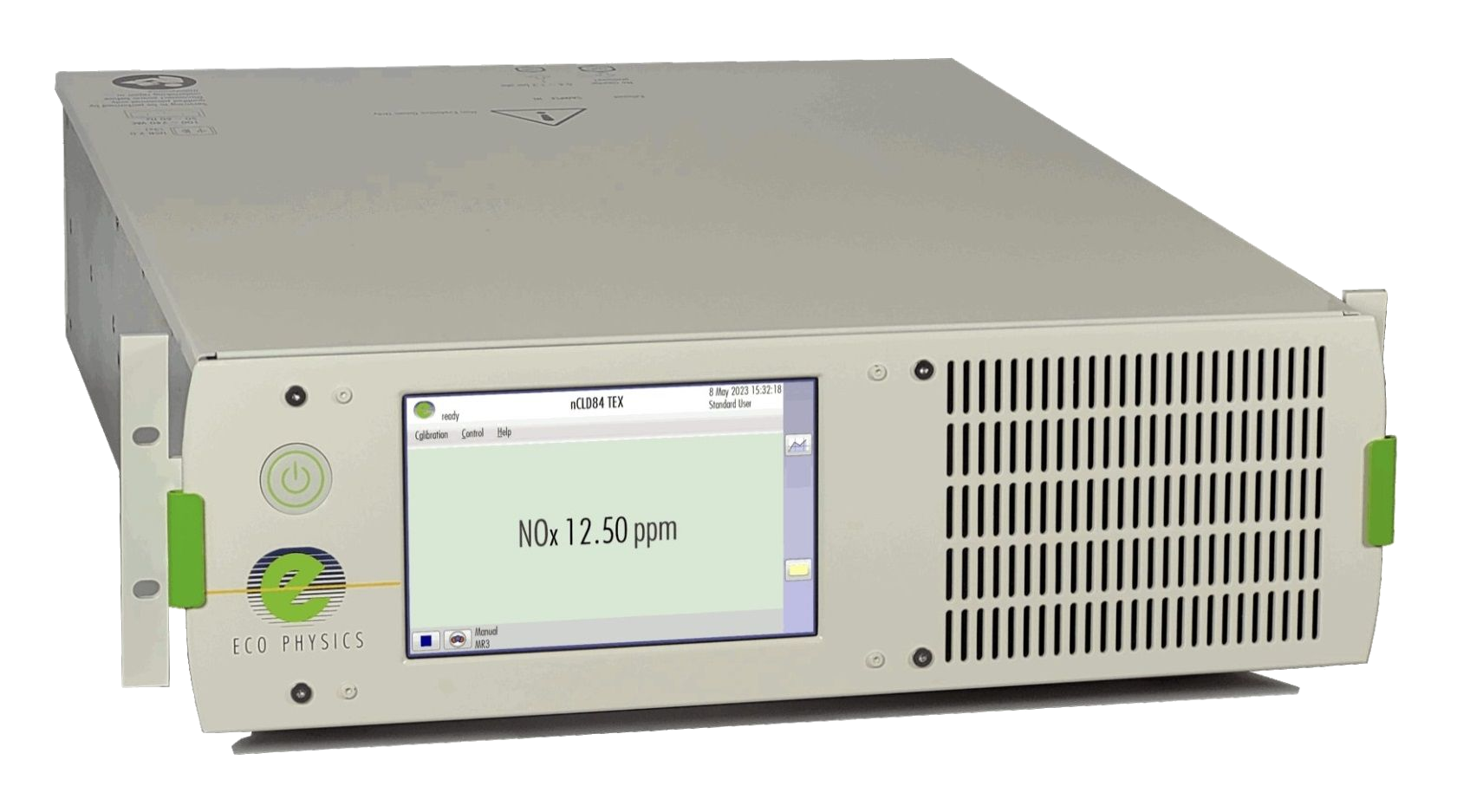

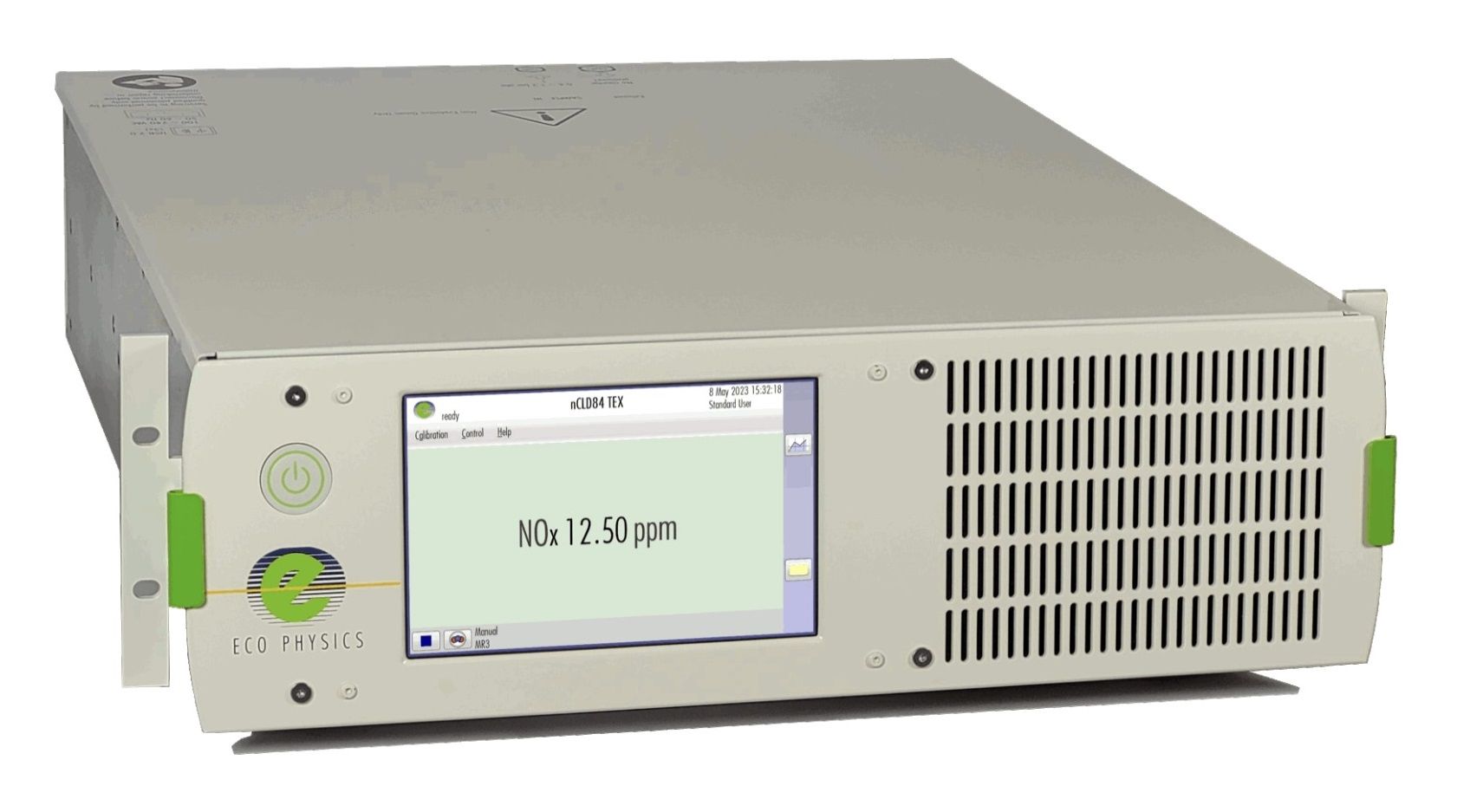

Introducing the nCLD 84 TEX - optimized for the refinery and power plant sector! Our most secure NOx analyzer for CEMS.
Introducing the nCLD 84 TEX - optimized for the refinery and power plant sector! Our most secure NOx analyzer for CEMS.
The CLD 60 Series
The CLD 60 Series
are our basic source emissions NOx
analyzers for stack monitoring, and represent our cost effective solution with state of the art data communications. Features include Ethernet connection, dual simultaneous analog outputs from two different ranges, 24 V dry contact closure for powering external devices and automatic cycling between NO and NOx
modes.
nCLD 60 Series Overview new
(156K PDF)
The 800 Series
The 800 Series
is our established, top of the line, compact NOx
analyzer with vacuum pump and thermal ozone destroyer inside the case of the analyzer. Also suitable for stack measurements but offering a smaller footprint. The 800 Series
also includes dual channel analyzers for simultaneous measurement of NO and NOx
, for the most accurate NO2
determination. We also offer the CLD 844 CM hr
for simultaneous NOx
and ammonia analysis.
We now offer a choice of converters, heated sample inlets, pressure regulation, and multiple reaction chambers. The 800 Series
instruments are ideal for compact applications, and offered with advanced options for research applications.
nCLD 800 Series Overview new
(211K PDF)
The nCLD EL Series
The nCLD EL Series
are our basic source emissions NOx analyzers for stack monitoring and other compliance applications, and represent our cost effective solution with state of the art data communications. Features include large LCD touchscreen display, Ethernet connectivity, and the option for automatic cycling between NO and NOx modes.
nCLD EL Series Overview new
(156K PDF)
The nCLD 800 Series
The nCLD 800 Series
is our established, top of the line, compact NOx
analyzer with vacuum pump and thermal ozone destroyer inside the case of the analyzer. Also suitable for stack measurements but offering a smaller footprint. The nCLD 800 Series
also includes dual channel analyzers for simultaneous measurement of NO and NOx
, for the most accurate NO2
determination. We also offer the nCLD 844 CM hr
for simultaneous NOx
and ammonia analysis.
We now offer a choice of converters, heated sample inlets, pressure regulation, and multiple reaction chambers. The nCLD 800 Series
instruments are ideal for compact applications, and offered with advanced options for research applications.
nCLD 800 Series Overview new
(211K PDF)
The nCLD EL Series
The nCLD EL Series
are our basic source emissions NOx
analyzers for stack monitoring and other compliance applications, and represent our cost effective solution with state of the art data communications. Features include large LCD touchscreen display, Ethernet connectivity, and the option for automatic cycling between NO and NOx
modes.
nCLD EL Series Overview new
(156K PDF)
The nCLD 800 Series
The nCLD 800 Series
is our established, top of the line, compact NOx
analyzer with vacuum pump and power supply inside the case of the analyzer. Also suitable for stack measurements, but offering a smaller footprint. The nCLD 800 Series
also includes dual channel analyzers for simultaneous measurement of NO and NOx, for the most accurate NO2
determination. We also offer the nCLD 844 CM hr
for simultaneous NOx
and ammonia analysis.
We also offer a choice of converters, heated sample inlets, pressure regulation, and multiple reaction chambers. The nCLD 800 Series
instruments are ideal for compact applications, and offered with advanced options for research applications.
nCLD 800 Series Overview new
(211K PDF)
Source Emission Products
Source Emission Products
| Range | Model | Accuracy † | Chambers ‡ | Features | Brochure |
|---|---|---|---|---|---|
| 0–50 ppm | nCLD 66 new | 0.5 ppb | single | D | 136K PDF |
| nCLD AL | 0.4 ppb | single | 140K PDF | ||
| nCLD AL2 | 0.4 ppb | dual | 1157K PDF | ||
| nCLD 855 Y | 0.4 ppb | dual | 2141K PDF | ||
| 0–500 ppm | nCLD EL (63) | 0.5 ppb | single | D | 3.5 MB PDF |
| nCLD EL (63) MOx | 0.05 ppb | single | A | 3.5 MB PDF | |
| nCLD 84 M | 0.025 ppm | single | 314K PDF | ||
| nCLD 844 M new | 0.025 ppm | dual | C, D | 548K PDF | |
| nCLD 844 CMhr | 0.025 ppm | dual | C | 419K PDF | |
| 0–5000 ppm | nCLD EL S (62) | 0.5 ppm | single | D | 3.5 MB PDF |
| nCLD EL S (62) MOx | 0.5 ppm | single | A | 4.0 MB PDF | |
| nCLD 82 S new | 0.25 ppm | single | D | 1.5K PDF | |
| nCLD 82 Mh | 0.25 ppm | single | 321K PDF | ||
| nCLD 822 Mr new | 0.25 ppm | dual | C, D | 108K PDF | |
| nCLD 822 Mh | 0.25 ppm | dual | C | 307K PDF | |
| nCLD 822 MMdr | 0.025 ppm | dual | B | 316K PDF |
Source Emission Products
Notes:
†
Accuracy is dependant on range selected. Highest accuracy shown.
‡
Single reaction chamber models analyze NOx
and NOxO2
, and are ideal for stack testing or CEMS. Dual reaction chamber models simultaneously measure NO and NOx
and calculate NO2
.
| Range | Model | Accuracy † | Chambers ‡ | Features | Brochure |
|---|---|---|---|---|---|
| 0–50 ppm | nCLD 66 new | 0.5 ppb | single | D | 136K PDF |
| nCLD AL | 0.4 ppb | single | 140K PDF | ||
| nCLD AL2 | 0.4 ppb | dual | 1157K PDF | ||
| nCLD 855 Y | 0.4 ppb | dual | 2141K PDF | ||
| 0–500 ppm | nCLD EL (63) | 0.5 ppb | single | D | 3.5 MB PDF |
| nCLD EL (63) MOx | 0.05 ppb | single | A | 3.5 MB PDF | |
| nCLD 84 M | 0.025 ppm | single | 314K PDF | ||
| nCLD 844 M new | 0.025 ppm | dual | C, D | 548K PDF | |
| nCLD 844 CMhr | 0.025 ppm | dual | C | 419K PDF | |
| 0–5000 ppm | nCLD EL S (62) | 0.5 ppm | single | D | 3.5 MB PDF |
| nCLD EL S (62) MOx | 0.5 ppm | single | A | 4.0 MB PDF | |
| nCLD 82 S new | 0.25 ppm | single | D | 1.5K PDF | |
| nCLD 82 Mh | 0.25 ppm | single | 321K PDF | ||
| nCLD 822 Mr new | 0.25 ppm | dual | C, D | 108K PDF | |
| nCLD 822 Mh | 0.25 ppm | dual | C | 307K PDF | |
| nCLD 822 MMdr | 0.025 ppm | dual | B | 316K PDF |
Features:
A) 0-25% Oxygen
B) Dual ranges and dual sample inlet
C) Heated sample inlet
D) 8″ LCD display & advanced electronics
Notes:
†
Accuracy is dependant on range selected. Highest accuracy shown.
‡
Single reaction chamber models analyze NOx
and NOxO2
, and are ideal for stack testing or CEMS. Dual reaction chamber models simultaneously measure NO and NOx
and calculate NO2
.
Features:
A) 0-25% Oxygen
B) Dual ranges and dual sample inlet
C) Heated sample inlet
D) 8″ LCD display & advanced electronics
| Range | Model | Accuracy † | Chambers ‡ | Features | Brochure |
|---|---|---|---|---|---|
| 0–50 ppm | nCLD 66 new | 0.5 ppb | single | D | 136K PDF |
| nCLD AL | 0.4 ppb | single | 140K PDF | ||
| nCLD AL2 | 0.4 ppb | dual | 1157K PDF | ||
| nCLD 855 Y | 0.4 ppb | dual | 2141K PDF | ||
| 0–500 ppm | nCLD EL (63) | 0.5 ppb | single | D | 632K PDF |
| nCLD EL (63) MOx | 0.05 ppb | single | A | 118K PDF | |
| nCLD 84 M | 0.025 ppm | single | 314K PDF | ||
| nCLD 844 M new | 0.025 ppm | dual | C, D | 548K PDF | |
| nCLD 844 CMhr | 0.025 ppm | dual | C | 419K PDF |
|
| 0–5000 ppm | nCLD EL S (62) | 0.5 ppm | single | D | 136K PDF |
| nCLD EL S (62) MOx | 0.5 ppm | single | A | 114K PDF | |
| nCLD 82 S new | 0.25 ppm | single | D | 1.5K PDF | |
| nCLD 82 Mh | 0.25 ppm | single | 321K PDF | ||
| nCLD 822 Mr new | 0.25 ppm | dual | C, D | 108K PDF | |
| nCLD 822 Mh | 0.25 ppm | dual | C | 307K PDF | |
| nCLD 822 MMdr | 0.025 ppm | dual | B | 316K PDF |
Notes:
†
Accuracy is dependant on range selected. Highest accuracy shown.
‡
Single reaction chamber models analyze NOx
and NOxO2
, and are ideal for stack testing or CEMS. Dual reaction chamber models simultaneously measure NO and NOx
and calculate NO2
.
Features:
A) 0-25% Oxygen
B) Dual ranges and dual sample inlet
C) Heated sample inlet
D) 8″ LCD display & advanced electronics
