Low Source NOx
Analyzers
Low Source NOx
analyzers
Low Source NOx
analyzers

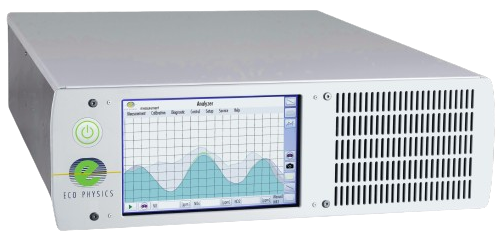

nCLD 84M, Low Source NOx analyzer! 0-500ppm
Specifications:
- Single channel analyzer, NO or NOx but with toggle function available
- Four freely selectable ranges from 0.5ppm – 500 ppm
- Min detectable concentration 0.012 ppm
- Temperature range 5-40 °C
- Sample flow rate 1.0 l/min
- Power requirement 400VA
- Supply voltage 100-230 V/50-60Hz
- Interface USB (2x), HDMI, Bluetooth, RS232, LAN, WLAN
- Dimensions Height 5. 25″, width 17″, depth 21.2″
- Weight 51lb
Key Features:
- Large color touch screen with real time graphing
- onboard computer & internal storage space
- Intuitive GUI customizable to different user levels and security logins
- Display of temperature, pressures, ram PMT signal counts, errors and warnings
- Auto start, calibration, linearization, check and auto ranging
- Internal temperature and pressure compensation
- Remote access and control by computer, PLC, TeamViewer or VNC viewer
- Analog, RS232, LAN, USB, WIFI, HDMI

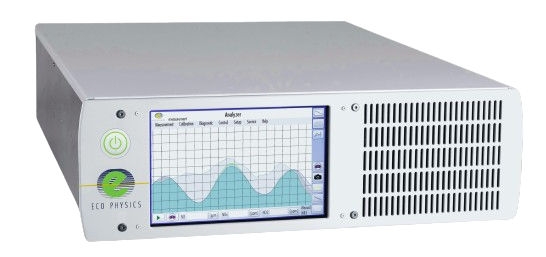

nCLD AL, Low Source NOx analyzer! 0-50ppm
Specifications:
- Single channel analyzer, NO or NOx but with toggle function available
- Four freely selectable ranges from 100ppb – 50,000 ppb
- Min detectable concentration 0.4 ppb
- Temperature range 5-40 °C
- Sample flow rate 1.0 l/min
- Power requirement 400VA
- Supply voltage 100-230 V/50-60Hz
- Interface USB (2x), HDMI, Bluetooth, RS232, LAN, WLAN
- Dimensions Height 5. 25″, width 17″, depth 21.2″
- Weight 51lb
Key Features:
- Large color touch screen with real time graphing
- onboard computer & internal storage space
- Intuitive GUI customizable to different user levels and security logins
- Display of temperature, pressures, ram PMT signal counts, errors and warnings
- Auto start, calibration, linearization, check and auto ranging
- Internal temperature and pressure compensation
- Remote access and control by computer, PLC, TeamViewer or VNC viewer
- Analog, RS232, LAN, USB, WIFI, HDMI

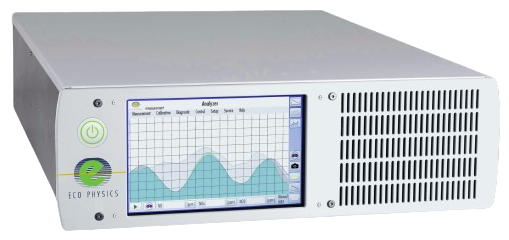

nCLD AL2, Low Source NOx analyzer! 0-50ppm
Specifications:
- Two channels, one for NO, one for NOx, simultaneous detection

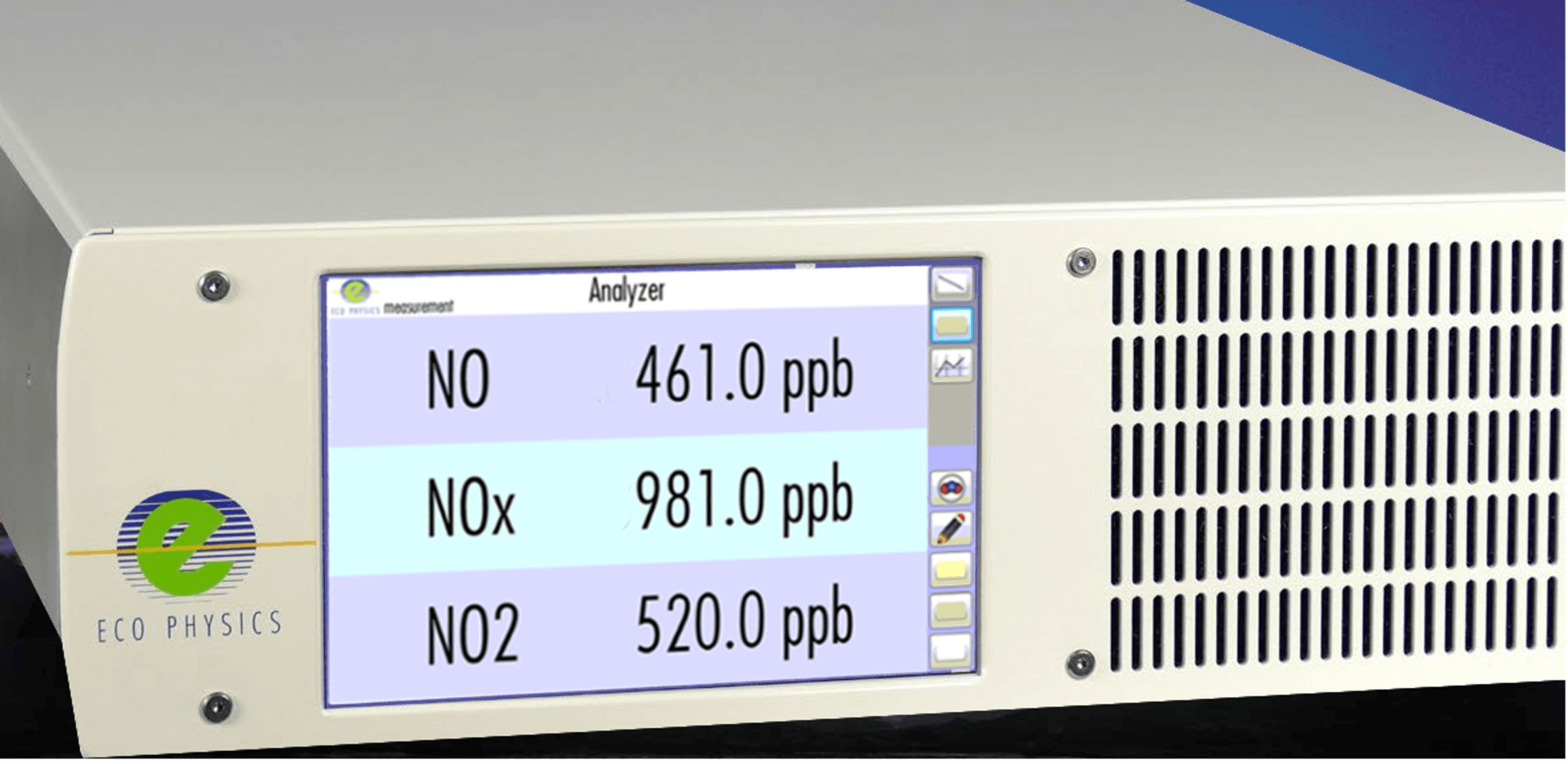

- Simultaneous display of NO, NO2 and NOx
- Four freely selectable ranges from 100ppb – 50,000 ppb
- Min detectable concentration 0.4 ppb
- Temperature range 5-40 °C
- Sample flow rate 1.0 l/min
- Power requirement 400VA
- Supply voltage 100-230 V/50-60Hz
- Interface USB (2x), HDMI, Bluetooth, RS232, LAN, WLAN
- Dimensions Height 5. 25″, width 17″, depth 21.2″
- Weight 51lb
Key Features:
- Large color touch screen with real time graphing
- onboard computer & internal storage space
- Intuitive GUI customizable to different user levels and security logins
- Display of temperature, pressures, ram PMT signal counts, errors and warnings
- Auto start, calibration, linearization, check and auto ranging
- Internal temperature and pressure compensation
- Remote access and control by computer, PLC, TeamViewer or VNC viewer
- Analog, RS232, LAN, USB, WIFI, HDMI
nCLD AL3, the world's first 3-channel chemiluminescence based NO/NO2/NH3 analyzer!
Specifications:
- Three channels, one for NO, one for NOx, and one for NOx-Amines for simultaneous detection
- Simultaneous display of NO, NO2, NOx, and NH3
- Four freely selectable ranges from 100ppb – 50,000 ppb, and 5,000 ppb for NH3
- Min detectable concentration 0.4 ppb
- Temperature range 5-40 °C
- Sample flow rate 1.0 l/min
- Power requirement 350VA
- Supply voltage 100-240 V/50-60Hz
- Interface USB (3x), HDMI, Bluetooth, RS232, LAN, WLAN
- Dimensions Height 5. 25″, width 19″, depth 21.2″
- Weight 51lb
Key Features:
- Large color touch screen with real time graphing
- onboard computer & internal storage space
- Intuitive GUI customizable to different user levels and security logins
- Display of temperature, pressures, ram PMT signal counts, errors and warnings
- Auto start, calibration, linearization, check and auto ranging
- Internal temperature and pressure compensation
- Remote access and control by computer, PLC, TeamViewer or VNC viewer
- Analog, RS232, LAN, USB, WIFI, HDMI
nCLD 855 Y, Low Source NOx analyzer! 0-50ppm
Specifications:
- Two channels, one for NO, one for NOx, simultaneous detection
- Simultaneous display of NO, NO2 and NOx
- Four freely selectable ranges from 100ppb – 50,000 ppb
- Min detectable concentration 0.4 ppb
- Temperature range 5-40 °C
- Sample flow rate 1.0 l/min
- Power requirement 400VA
- Supply voltage 100-230 V/50-60Hz
- Interface USB (2x), HDMI, Bluetooth, RS232, LAN, WLAN
- Dimensions Height 5. 25″, width 17″, depth 21.2″
- Weight 51lb
Key Features:
- Large color touch screen with real time graphing
- onboard computer & internal storage space
- Intuitive GUI customizable to different user levels and security logins
- Display of temperature, pressures, ram PMT signal counts, errors and warnings
- Auto start, calibration, linearization, check and auto ranging
- Internal temperature and pressure compensation
- Remote access and control by computer, PLC, TeamViewer or VNC viewer
- Analog, RS232, LAN, USB, WIFI, HDMI
nCLD 84M,
Low Source NOx analyzer! 0-500ppm
Specifications:
- Single channel analyzer, NO or NOx but with toggle function available
- Four freely selectable ranges from 0.5ppm – 500 ppm
- Min detectable concentration 0.012 ppm
- Temperature range 5-40 °C
- Sample flow rate 1.0 l/min
- Power requirement 400VA
- Supply voltage 100-230 V/50-60Hz
- Interface USB (2x), HDMI, Bluetooth, RS232, LAN, WLAN
- Dimensions Height 5. 25″, width 17″, depth 21.2″
- Weight 51lb
Key Features:
- Large color touch screen with real time graphing
- onboard computer & internal storage space
- Intuitive GUI customizable to different user levels and security logins
- Display of temperature, pressures, ram PMT signal counts, errors and warnings
- Auto start, calibration, linearization, check and auto ranging
- Internal temperature and pressure compensation
- Remote access and control by computer, PLC, TeamViewer or VNC viewer
- Analog, RS232, LAN, USB, WIFI, HDMI
nCLD AL, Low Source NOx analyzer! 0-50ppm
Specifications:
- Single channel analyzer, NO or NOx but with toggle function available
- Four freely selectable ranges from 100ppb – 50,000 ppb
- Min detectable concentration 0.4 ppb
- Temperature range 5-40 °C
- Sample flow rate 1.0 l/min
- Power requirement 400VA
- Supply voltage 100-230 V/50-60Hz
- Interface USB (2x), HDMI, Bluetooth, RS232, LAN, WLAN
- Dimensions Height 5. 25″, width 17″, depth 21.2″
- Weight 51lb
Key Features:
- Large color touch screen with real time graphing
- onboard computer & internal storage space
- Intuitive GUI customizable to different user levels and security logins
- Display of temperature, pressures, ram PMT signal counts, errors and warnings
- Auto start, calibration, linearization, check and auto ranging
- Internal temperature and pressure compensation
- Remote access and control by computer, PLC, TeamViewer or VNC viewer
- Analog, RS232, LAN, USB, WIFI, HDMI
nCLD AL2, Low Source NOx analyzer! 0-50ppm
Specifications:
- Two channels, one for NO, one for NOx, simultaneous detection
- Simultaneous display of NO, NO2 and NOx
- Four freely selectable ranges from 100ppb – 50,000 ppb
- Min detectable concentration 0.4 ppb
- Temperature range 5-40 °C
- Sample flow rate 1.0 l/min
- Power requirement 400VA
- Supply voltage 100-230 V/50-60Hz
- Interface USB (2x), HDMI, Bluetooth, RS232, LAN, WLAN
- Dimensions Height 5. 25″, width 17″, depth 21.2″
- Weight 51lb
Key Features:
- Large color touch screen with real time graphing
- onboard computer & internal storage space
- Intuitive GUI customizable to different user levels and security logins
- Display of temperature, pressures, ram PMT signal counts, errors and warnings
- Auto start, calibration, linearization, check and auto ranging
- Internal temperature and pressure compensation
- Remote access and control by computer, PLC, TeamViewer or VNC viewer
- Analog, RS232, LAN, USB, WIFI, HDMI
nCLD AL3, the world's first 3-channel chemiluminescence based NO/NO2/NH3 analyzer!
Specifications:
- Three channels, one for NO, one for NOx, and one for NOx-Amines for simultaneous detection
- Simultaneous display of NO, NO2, NOx, and NH3
- Four freely selectable ranges from 100ppb – 50,000 ppb, and 5,000 ppb for NH3
- Min detectable concentration 0.4 ppb
- Temperature range 5-40 °C
- Sample flow rate 1.0 l/min
- Power requirement 350VA
- Supply voltage 100-240 V/50-60Hz
- Interface USB (3x), HDMI, Bluetooth, RS232, LAN, WLAN
- Dimensions Height 5. 25″, width 19″, depth 21.2″
- Weight 51lb
Key Features:
- Large color touch screen with real time graphing
- onboard computer & internal storage space
- Intuitive GUI customizable to different user levels and security logins
- Display of temperature, pressures, ram PMT signal counts, errors and warnings
- Auto start, calibration, linearization, check and auto ranging
- Internal temperature and pressure compensation
- Remote access and control by computer, PLC, TeamViewer or VNC viewer
- Analog, RS232, LAN, USB, WIFI, HDMI
nCLD 855 Y, Low Source NOx analyzer! 0-50ppm
Specifications:
- Two channels, one for NO, one for NOx, simultaneous detection
- Simultaneous display of NO, NO2 and NOx
- Four freely selectable ranges from 100ppb – 50,000 ppb
- Min detectable concentration 0.4 ppb
- Temperature range 5-40 °C
- Sample flow rate 1.0 l/min
- Power requirement 400VA
- Supply voltage 100-230 V/50-60Hz
- Interface USB (2x), HDMI, Bluetooth, RS232, LAN, WLAN
- Dimensions Height 5. 25″, width 17″, depth 21.2″
- Weight 51lb
Key Features:
- Large color touch screen with real time graphing
- onboard computer & internal storage space
- Intuitive GUI customizable to different user levels and security logins
- Display of temperature, pressures, ram PMT signal counts, errors and warnings
- Auto start, calibration, linearization, check and auto ranging
- Internal temperature and pressure compensation
- Remote access and control by computer, PLC, TeamViewer or VNC viewer
- Analog, RS232, LAN, USB, WIFI, HDMI
nCLD 84M -
Low Source NOx analyzer! 0-500ppm
Specifications:
- Single channel analyzer, NO or NOx but with toggle function available
- Four freely selectable ranges from 0.5ppm – 500 ppm
- Min detectable concentration 0.012 ppm
- Temperature range 5-40 °C
- Sample flow rate 1.0 l/min
- Power requirement 400VA
- Supply voltage 100-230 V/50-60Hz
- Interface USB (2x), HDMI, Bluetooth, RS232, LAN, WLAN
- Dimensions Height 5. 25″, width 17″, depth 21.2″
- Weight 51lb
Key Features:
- Large color touch screen with real time graphing
- onboard computer & internal storage space
- Intuitive GUI customizable to different user levels and security logins
- Display of temperature, pressures, ram PMT signal counts, errors and warnings
- Auto start, calibration, linearization, check and auto ranging
- Internal temperature and pressure compensation
- Remote access and control by computer, PLC, TeamViewer or VNC viewer
- Analog, RS232, LAN, USB, WIFI, HDMI
nCLD AL, Low Source NOx analyzer! 0-50ppm
Specifications:
- Single channel analyzer, NO or NOx but with toggle function available
- Four freely selectable ranges from 100ppb – 50,000 ppb
- Min detectable concentration 0.4 ppb
- Temperature range 5-40 °C
- Sample flow rate 1.0 l/min
- Power requirement 400VA
- Supply voltage 100-230 V/50-60Hz
- Interface USB (2x), HDMI, Bluetooth, RS232, LAN, WLAN
- Dimensions Height 5. 25″, width 17″, depth 21.2″
- Weight 51lb
Key Features:
- Large color touch screen with real time graphing
- onboard computer & internal storage space
- Intuitive GUI customizable to different user levels and security logins
- Display of temperature, pressures, ram PMT signal counts, errors and warnings
- Auto start, calibration, linearization, check and auto ranging
- Internal temperature and pressure compensation
- Remote access and control by computer, PLC, TeamViewer or VNC viewer
- Analog, RS232, LAN, USB, WIFI, HDMI
nCLD AL2, Low Source NOx analyzer! 0-50ppm
Specifications:
- Two channels, one for NO, one for NOx, simultaneous detection
- Simultaneous display of NO, NO2 and NOx
- Four freely selectable ranges from 100ppb – 50,000 ppb
- Min detectable concentration 0.4 ppb
- Temperature range 5-40 °C
- Sample flow rate 1.0 l/min
- Power requirement 400VA
- Supply voltage 100-230 V/50-60Hz
- Interface USB (2x), HDMI, Bluetooth, RS232, LAN, WLAN
- Dimensions Height 5. 25″, width 17″, depth 21.2″
- Weight 51lb
Key Features:
- Large color touch screen with real time graphing
- onboard computer & internal storage space
- Intuitive GUI customizable to different user levels and security logins
- Display of temperature, pressures, ram PMT signal counts, errors and warnings
- Auto start, calibration, linearization, check and auto ranging
- Internal temperature and pressure compensation
- Remote access and control by computer, PLC, TeamViewer or VNC viewer
- Analog, RS232, LAN, USB, WIFI, HDMI
nCLD AL3, the world's first 3-channel chemiluminescence based NO/NO2/NH3 analyzer!
Specifications:
- Three channels, one for NO, one for NOx, and one for NOx-Amines for simultaneous detection
- Simultaneous display of NO, NO2, NOx, and NH3
- Four freely selectable ranges from 100ppb – 50,000 ppb, and 5,000 ppb for NH3
- Min detectable concentration 0.4 ppb
- Temperature range 5-40 °C
- Sample flow rate 1.0 l/min
- Power requirement 350VA
- Supply voltage 100-240 V/50-60Hz
- Interface USB (3x), HDMI, Bluetooth, RS232, LAN, WLAN
- Dimensions Height 5. 25″, width 19″, depth 21.2″
- Weight 51lb
Key Features:
- Large color touch screen with real time graphing
- onboard computer & internal storage space
- Intuitive GUI customizable to different user levels and security logins
- Display of temperature, pressures, ram PMT signal counts, errors and warnings
- Auto start, calibration, linearization, check and auto ranging
- Internal temperature and pressure compensation
- Remote access and control by computer, PLC, TeamViewer or VNC viewer
- Analog, RS232, LAN, USB, WIFI, HDMI
nCLD 855 Y, Low Source NOx analyzer! 0-50ppm
Specifications:
- Two channels, one for NO, one for NOx, simultaneous detection
- Simultaneous display of NO, NO2 and NOx
- Four freely selectable ranges from 100ppb – 50,000 ppb
- Min detectable concentration 0.4 ppb
- Temperature range 5-40 °C
- Sample flow rate 1.0 l/min
- Power requirement 400VA
- Supply voltage 100-230 V/50-60Hz
- Interface USB (2x), HDMI, Bluetooth, RS232, LAN, WLAN
- Dimensions Height 5. 25″, width 17″, depth 21.2″
- Weight 51lb
Key Features:
- Large color touch screen with real time graphing
- onboard computer & internal storage space
- Intuitive GUI customizable to different user levels and security logins
- Display of temperature, pressures, ram PMT signal counts, errors and warnings
- Auto start, calibration, linearization, check and auto ranging
- Internal temperature and pressure compensation
- Remote access and control by computer, PLC, TeamViewer or VNC viewer
- Analog, RS232, LAN, USB, WIFI, HDMI
Ambient Level and Low Source NOx analyzers
| Range
|
Model | Accuracy † | Chambers ‡ | Features | Brochure |
|---|---|---|---|---|---|
| 0–50 ppm | nCLD 66 new | 0.5 ppb | single | D | 136K PDF |
| nCLD AL | 0.4 ppb | single | 3808K PDF | ||
| nCLD AL2 |
0.4 ppb | dual | 5400K PDF | ||
| nCLD 855 Y nCLD AL3 new |
0.4 ppb0.4 ppb |
dual three |
2564K PDF 3302K PDF |
||
| 0–500 ppm | nCLD EL S new | 0.5 ppb | single | D | 3581K PDF |
| nCLD EL |
0.05 ppb | single | A | 3589K PDF | |
| nCLD 84 M | 0.025 ppm | single | 314K PDF | ||
| nCLD 844 M new | 0.025 ppm | dual | C, D | 548K PDF | |
| nCLD 844 CMhr | 0.025 ppm | dual | C | 419K PDF |
|
