Automotive Products

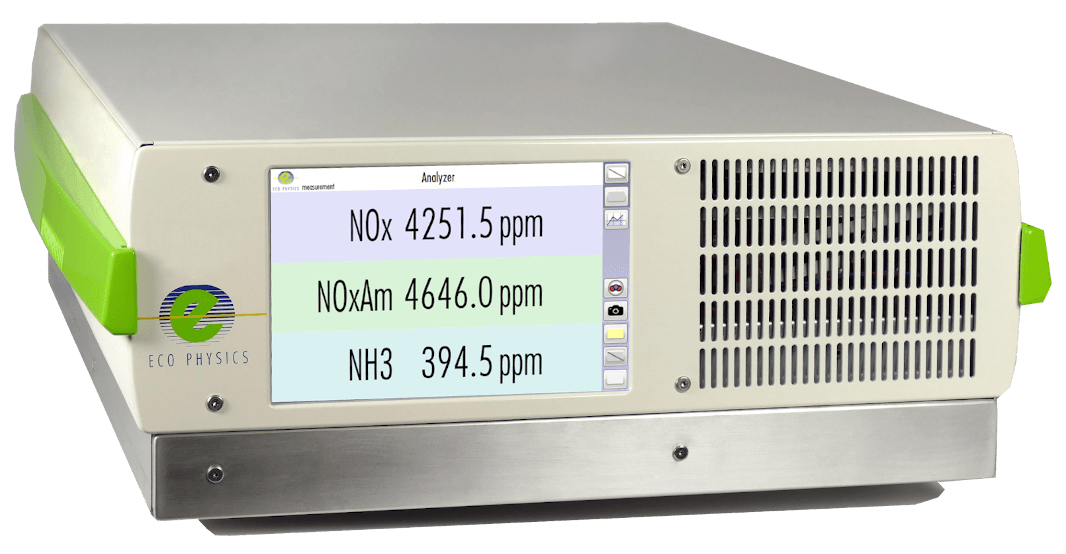

A white box with a screen that says ' ho ' on it

UNPARALLELED PERFORMANCE

The Supreme Line analyzers have an unequaled range of operation and the lowest detection level for an automotive analyzer. They offer an integrated hard disk with nearly unlimited storage capacity for data logging, and they can be operated via integrated touch screen or remote Internet connection.

A tilted and adjustable front panel optimizes display readability, or you can add an external monitor. The clear layout of the menu structure enables you to take advantage of all analyzer functions almost intuitively, and the structured SQL database lets you easily export data.

NO and NO_x are simultaneously measured, while NO₂ is calculated and displayed. The AK protocol is standard with this remarkable instrument.

nCLD Supreme Line Overview ^new (775K PDF)

UNPARALLELED PERFORMANCE

The front 7" LCD touch screen panel optimizes display readability, and you can add an external monitor. The clear layout of the menu structure enables you to take advantage of all analyzer functions almost intuitively, and the structured SQL database lets you easily export data.

NO and NO_x are simultaneously measured, while NO₂ is calculated and displayed. The AK protocol is standard with this remarkable instrument.

nCLD Supreme Line Overview ^new (775K PDF)

UNPARALLELED PERFORMANCE

The Automotive Research analyzers have an unequaled range of operation and the lowest detection level for an automotive analyzer. They offer an integrated hard disk with nearly unlimited storage capacity for data logging, and they can be operated via integrated touch screen or remote Internet connection.

The large, 7" LCD touch screen front panel optimizes display readability, but you can also add an external monitor. The clear layout of the menu structure enables you to take advantage of all analyzer functions almost intuitively, and the structured SQL database lets you easily export data.

NO and NO_x are simultaneously measured, while NO₂ and on selected models, NH3 is calculated and displayed. The AK protocol is standard with the 811 series instruments.

The nCLD EL 2 is recently TUeV QAL1certified to DIN EN 15267.

The CLD 800 series

The CLD 800 series is our standard research line of analyzers, and offers many advantages over our earlier products, the 700 Series. By including an integrated vacuum pump and thermal ozone destroyer inside the case of the analyzer, the system is much more compact and efficient.

We offer a choice of converters, heated sample inlets, pressure regulation, and multiple reaction chambers. The CLD 800 series instruments are ideal for compact applications with reduced voltage requirements.

nCLD 800 Series Overview ^new (1.2K PDF)

The nCLD 800 series

The nCLD 800 series is our research line of analyzers, and offers many advantages over our earlier products. By including an integrated vacuum pump, power supply and thermal ozone destroyer inside the case of the analyzer, the system is much more compact and efficient.

We offer a choice of converters, heated sample inlets, pressure regulation, and multiple reaction chambers. The CLD 800 series instruments are ideal for compact applications with reduced voltage requirements.

nCLD 800 Series Overview ^new (1.2K PDF)

Automotive Research Products

Range	Model	Accuracy ^†	Chambers ^‡	Brochure
0–500 ppm	nCLD 844 CMhr	.025 ppm	dual	419K PDF
5–5000 ppm	nCLD 822 Mh ^new	0.25 ppm	dual	1.9K PDF
0–10,000 ppm	nCLD 811 CM ^new	1.0 ppb	dual	6MB PDF
0–10,000 ppm	nCLD 811 M	1.0 ppb	dual	6MB PDF

Automotive Research Products

Range	Model	Accuracy ^†	Chambers ^‡	Brochure
0–500 ppm	nCLD 844 CMhr	.025 ppm	dual	419K PDF
5–5000 ppm	nCLD 822 Mh ^new	0.25 ppm	dual	1.9K PDF
0–10,000 ppm	nCLD 811 CM ^new	1.0 ppb	dual	6MB PDF
0–10,000 ppm	nCLD 811 M	1.0 ppb	dual	6MB PDF

Automotive Research Products

Range	Model	Accuracy ^†	Chambers ^‡	Brochure
0–500 ppm	nCLD 844 CMhr	.012 ppm	dual	3.9MB PDF
5–5000 ppm	nCLD EL2 (fka nCLD 822 Mh) ^new	0.12 ppm	dual	5.9MB PDF
0–10,000 ppm	nCLD 811 CM ^new	1.0 ppb	dual	6MB PDF
0–10,000 ppm	nCLD 811 M	1.0 ppb	dual	6MB PDF

Notes:

^† Accuracy is dependant on range selected. Highest accuracy shown.

^‡ Single reaction chamber models analyze NO_x or NO, and are ideal for fast response applications. Dual reaction chamber models simultaneously measure NO and NO_x and calculate NO₂ .

Notes:

^† Accuracy is dependant on range selected. Highest accuracy shown.

^‡ Single reaction chamber models analyze NO_x or NO, and are ideal for fast response applications. Dual reaction chamber models simultaneously measure NO and NO_x and calculate NO₂ .

Notes:

^† Accuracy is dependant on range selected. Highest accuracy shown.

^‡ Dual reaction chamber models simultaneously measure NO and NO_x and calculate NO₂ .
